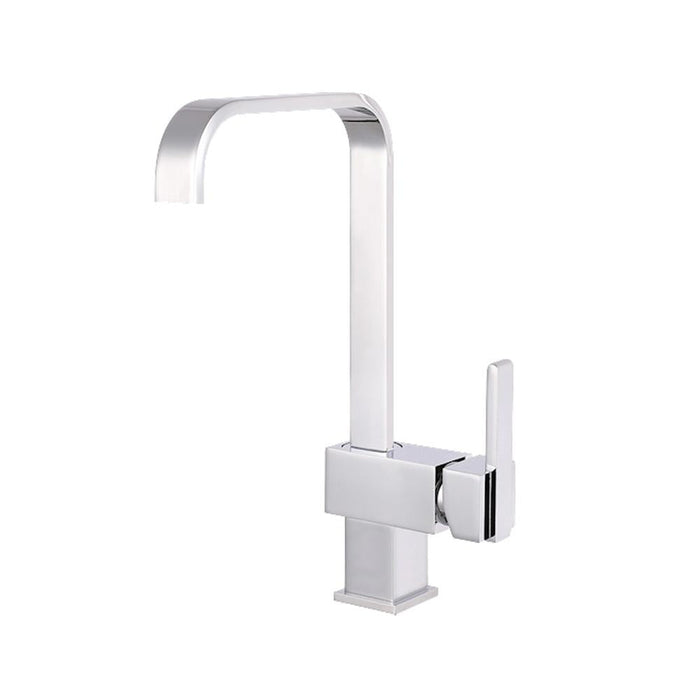

Nuie Square Side Action Kitchen Tap
by Nuie
Save £35.00
Original price
£194.00
Current price
£159.00
CODE: KC312
Description
Description

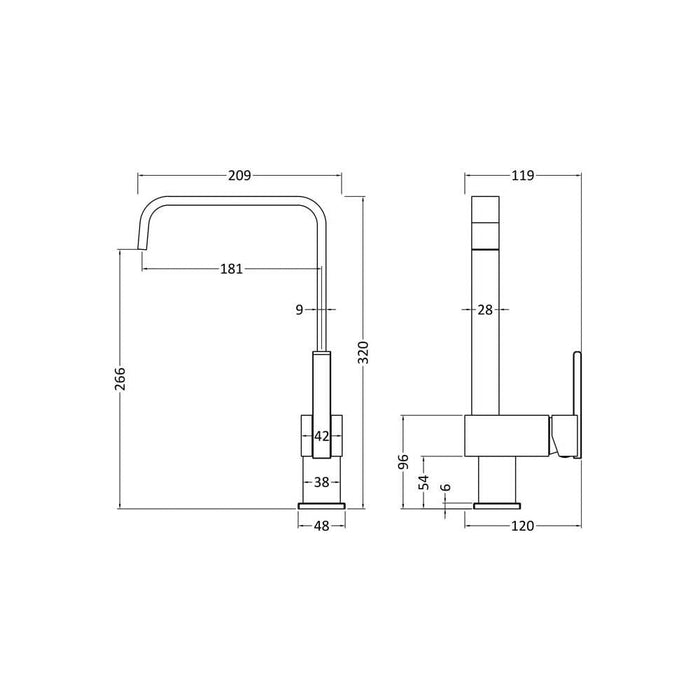

- Height: 320 mm
- Width: 119 mm
- Depth: 208 mm
- Finish: Chrome
- Guarantee: 5 Year
Features & benefits
- A high-end finishing touch to any kitchen
- Side action
- Ceramic disc technology for long life and smooth operation
- High quality brass internals with luxury chrome finish
Technical Specification
| Includes Waste | Waste Not Included |
| Valve/Cartridge Type | Single Lever Cartridge |
| Product Material | BRASS |
| Mount Type | Deck |
| Pipe Size | 15 mm (1/2" BSP) |
| Control Type | Manual |
| Operating Pressure | 1.0 |
| Flow Rate 1Bar l/m (Taps) | 5.5 l/min |
| Flow Rate 2Bar l/m (Taps) | 7.5 l/min |
| Flow Rate 3Bar l/m (Taps) | 8.5 l/min |
| WRAS Approved (Taps) | NO |
| TMV2 Approved (Taps) | No |
| TMV3 Approved (Taps) | No |
| Tap Installation Holes | 1 |
| No. Of Handles | 2 |
| Height Of Spout | 266 MM |
| Deck Plate Included | Yes |
| Tap Tails Included | Yes |
| Tap Spout Projection | 184 MM |
| Cartridge Included | Yes |
| Cartridge Material | Plastic |
| Assembly Required | No |
| Fixings Included | Yes |
| Mounting Hardware Included | Yes |
| Installation Required | Yes |
Illustrated Code
|
KC312
|
Downloads
Click for KC312 Fitting Instruction Data Sheet
