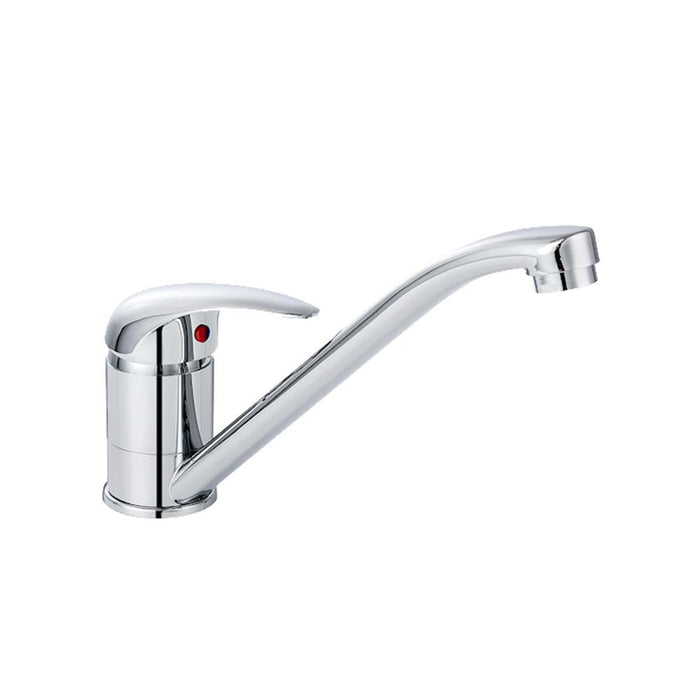

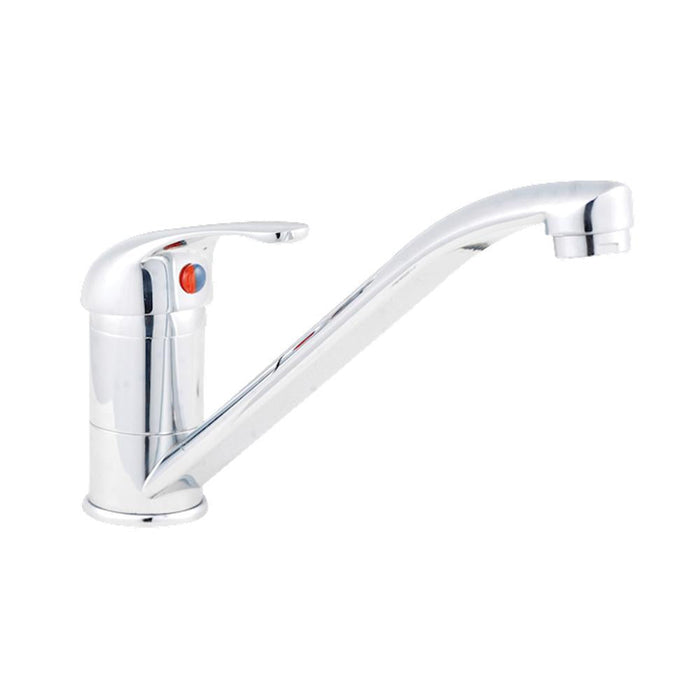

Nuie Eon D-Type Sink Mixer With Swivel Spout
by Nuie
Save £14.00
Original price
£76.00
Current price
£62.00
CODE: DTY306
Description
Description
- Height: 118 mm, 127 mm
- Width: 55 mm, 52 mm
- Depth: 228 mm, 227 mm
- Finish: Chrome
- Guarantee: 5 Year
Features & benefits
- Simplicity at its finest, without compromising on quality
- With swivel spout
- Ceramic disc technology for long life and smooth operation
- High quality brass internals with luxury chrome finish
Technical Specification
| Includes Waste | Waste Not Included |
| Pipe Centres | 180 MM |
| Valve/Cartridge Type | Single Lever Cartridge |
| Product Material | BRASS |
| Mount Type | Deck |
| Pipe Size | 22 mm (3/4" BSP) |
| Control Type | Manual |
| Operating Pressure | 0.1 |
| Flow Rate 0.1Bar l/m (Taps) | 2 l/min |
| Flow Rate 0.5Bar l/m (Taps) | 5 l/min |
| Flow Rate 1Bar l/m (Taps) | 7.5 l/min |
| Flow Rate 2Bar l/m (Taps) | 11 l/min |
| Flow Rate 3Bar l/m (Taps) | 12 l/min |
| WRAS Approved (Taps) | NO |
| TMV2 Approved (Taps) | No |
| TMV3 Approved (Taps) | No |
| Tap Installation Holes | 1 |
| No. Of Handles | 1 |
| Height Of Spout | 120MM |
| Tap Tails Included | Yes |
| Tap Spout Projection | 220MM, 201 MM |
| Cartridge Included | Yes |
| Cartridge Material | Plastic |
| Assembly Required | No |
| Fixings Included | Yes |
| Mounting Hardware Included | Yes |
| Installation Required | Yes |

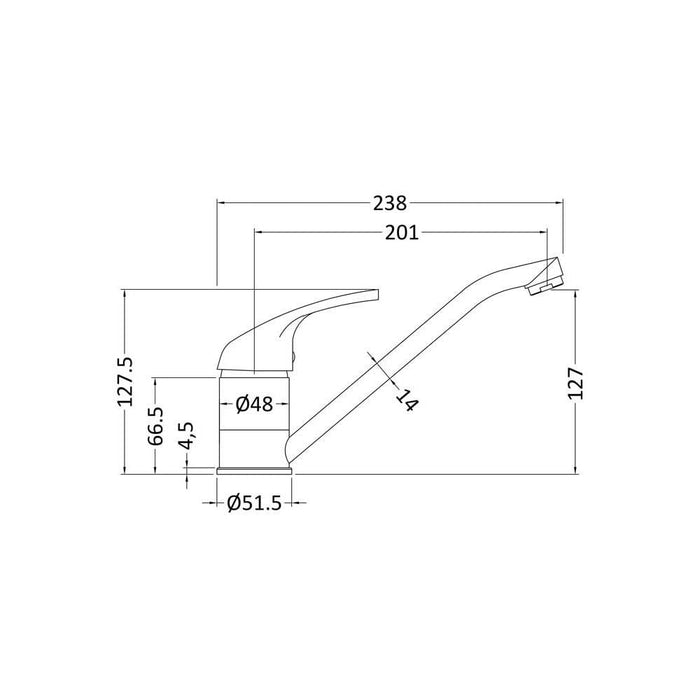

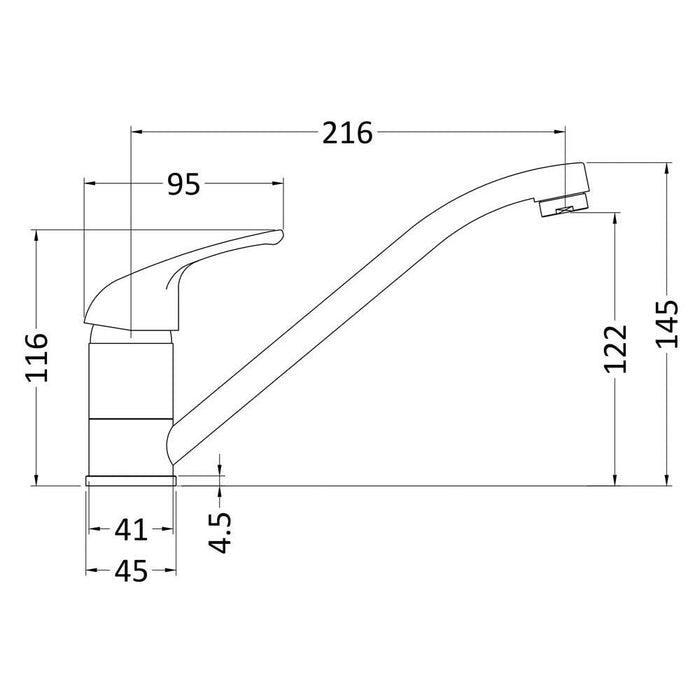

Illustrated Code
|
DTY306
|
KA306
|
Downloads
Click for DTY306 Fitting Instruction Data Sheet
Click for KA306 Fitting Instruction Data Sheet
