Description

Features

• Dimensions: W 535 x D 435 x H 205mm
• Cut-out Dimensions: W 507mm x D 406mm
• Suitable for cabinet widths of 600mm or greater
• Main Bowl Dimensions: W 500 x D 400 x H 200mm
• Stainless Steel sink with a polished finish
• Durable 304 stainless steel construction throughout
• Light brushed steel texture
• Deep bowl(s) to accept larger cookware
• Comes with a 10 Years Guarantee

Specification

• Product Depth (mm): 435
• Product Width (mm): 535
• Product Height (mm): 205
• Cut Out Depth (mm): 406
• Cut Out Width (mm): 507
• Main Bowl Width (mm): 500
• Main Bowl Height (mm): 200
• Main Bowl Depth (mm): 400
• Manufacturers Guarantee: 10 Years
• Accessories Included: Included: AX1001, AX1006, AX1008, AX4001, AX1017; Optional: AX2501, AX2503
• Brand: Abode
• Colour: Grey/Silver
• Corner Radius (mm): 50
• Finish: Polished
• Gauge Thickness (mm): 0.7
• Min Cabinet Width (mm): 600
• No. Drainers: 0
• No. Tap Holes: 0
• Product Type: Sink
• Range Name: Matrix R50
• Sink Colour: Stainless Steel
• Sink Material: Stainless Steel
• Sink No. Bowls: 1
• Sink Reversible: No
• Type: Undermount

Illustrated Code

Downloads

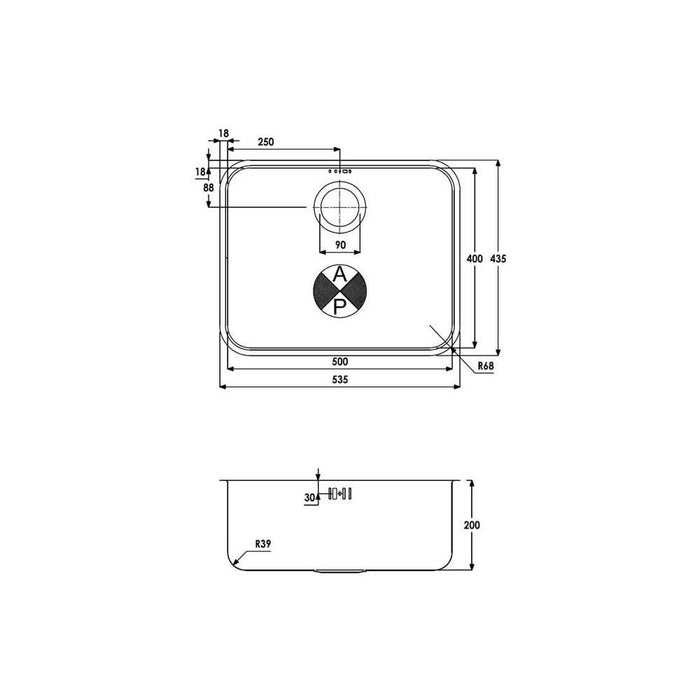

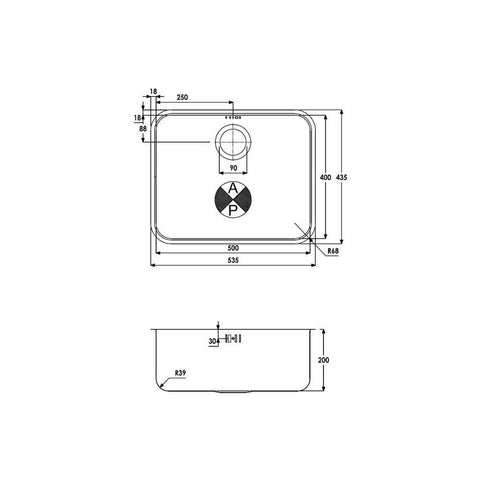

Click for AW5015-Line-Drawings
