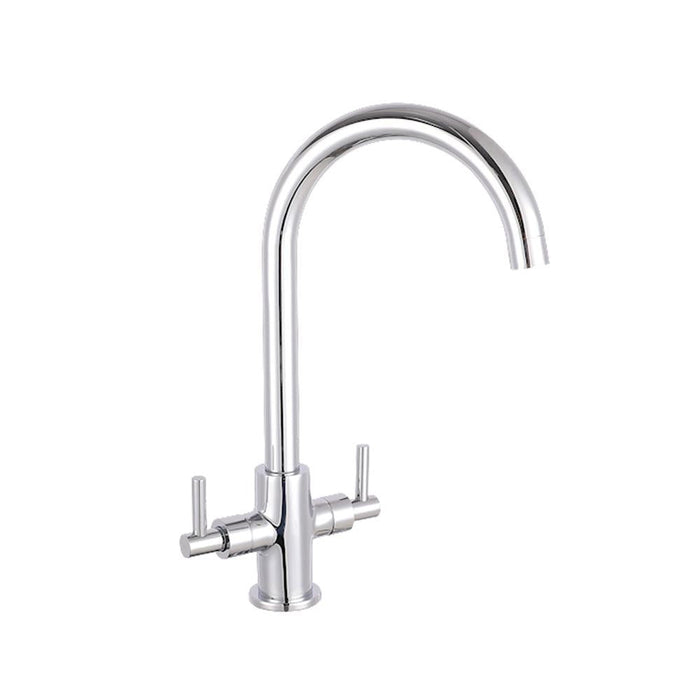

Nuie Swivel Spout Kitchen Sink Mixer
by Nuie
Save £20.00
Original price
£105.00
Current price
£85.00
CODE: KB323
Description
Description
- Height: 367 mm
- Width: 148 mm
- Finish: Chrome
- Guarantee: 5 Year
Features & benefits
- A high-end finishing touch to any kitchen
- Sleek minimalistic lever design
- High quality brass internals with luxury chrome finish
- Waste not included
Technical Specification
| Includes Waste | Waste Not Included |
| Valve/Cartridge Type | Single Lever Cartridge |
| Product Material | BRASS |
| Mount Type | Deck |
| Pipe Size | 15 mm (1/2" BSP) |
| Control Type | Manual |
| Operating Pressure | 1.0 |
| Flow Rate 0.1Bar l/m (Taps) | 4.8 l/min |
| Flow Rate 0.5Bar l/m (Taps) | 13.4 l/min |
| Flow Rate 1Bar l/m (Taps) | 19.6 l/min |
| Flow Rate 2Bar l/m (Taps) | 28.3 l/min |
| Flow Rate 3Bar l/m (Taps) | 35 l/min |
| WRAS Approved (Taps) | NO |
| TMV2 Approved (Taps) | No |
| TMV3 Approved (Taps) | No |
| Tap Installation Holes | 1 |
| No. Of Handles | 2 |
| Deck Plate Included | Yes |
| Tap Tails Included | Yes |
| Tap Spout Projection | 170 MM |
| Cartridge Included | Yes |
| Cartridge Material | Plastic |
| Assembly Required | No |
| Fixings Included | Yes |
| Mounting Hardware Included | Yes |
| Installation Required | Yes |

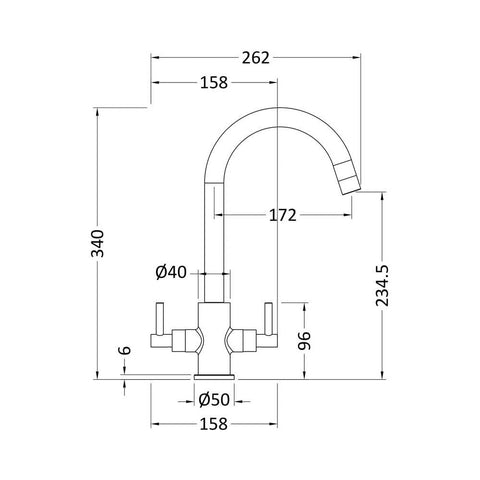

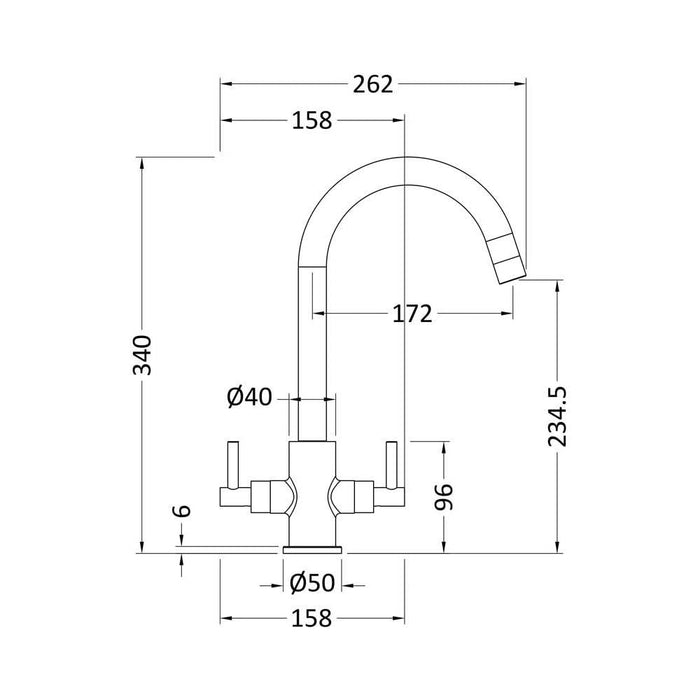

Illustrated Code
|
KB323
|
Downloads
Click for KB323 Fitting Instruction Data Sheet
