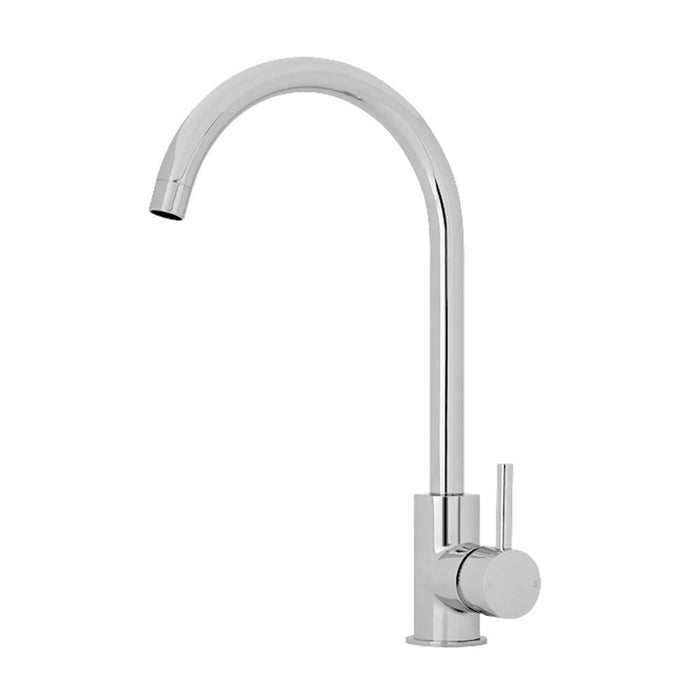

Nuie Single Lever Kitchen Tap with Swivel Spout
by Nuie
Save £23.00
Original price
£126.00
Current price
£103.00
CODE: KB325
Description
Description
- Height: 376 mm
- Width: 108 mm
- Finish: Chrome
- Guarantee: 5 Year
Features & benefits
- A high-end finishing touch to any kitchen
- Sleek minimalistic lever design
- High quality brass internals with luxury chrome finish
- Waste not included
Technical Specification
| Includes Waste | Waste Not Included |
| Valve/Cartridge Type | Single Lever Cartridge |
| Product Material | BRASS |
| Mount Type | Deck |
| Pipe Size | 15 mm (1/2" BSP) |
| Control Type | Manual |
| Operating Pressure | 1.0 |
| Flow Rate 0.1Bar l/m (Taps) | 2.5 l/min |
| Flow Rate 0.5Bar l/m (Taps) | 7 l/min |
| Flow Rate 1Bar l/m (Taps) | 10.2 l/min |
| Flow Rate 2Bar l/m (Taps) | 14.7 l/min |
| Flow Rate 3Bar l/m (Taps) | 18.1 l/min |
| WRAS Approved (Taps) | NO |
| TMV2 Approved (Taps) | No |
| TMV3 Approved (Taps) | No |
| Tap Installation Holes | 1 |
| No. Of Handles | 2 |
| Deck Plate Included | Yes |
| Tap Tails Included | Yes |
| Tap Spout Projection | 210 MM |
| Cartridge Included | Yes |
| Cartridge Material | Plastic |
| Assembly Required | No |
| Fixings Included | Yes |
| Mounting Hardware Included | Yes |
| Installation Required | Yes |
Illustrated Code
|
KB325
|
Downloads
Click for KB325 Fitting Instruction Data Sheet
