Nuie Cruciform Sink Mixer
by Nuie
Save £26.00
Original price
£139.00
Current price
£113.00
CODE: KB304
Description
Description
- Height: 345 mm
- Width: 180 mm
- Depth: 184 mm
- Finish: Chrome
- Guarantee: 5 Year
Features & benefits
- A high-end finishing touch to any kitchen
- Traditional lever style
- Ceramic disc technology for long life and smooth operation
- High quality brass internals with luxury chrome finish
Technical Specification
| Includes Waste | Waste Not Included |
| Valve/Cartridge Type | 1/4 Turn Ceramic Disc |
| Product Material | BRASS |
| Mount Type | Deck |
| Pipe Size | 15 mm (1/2" BSP) |
| Control Type | Manual |
| Operating Pressure | 0.1 |
| Flow Rate 0.1Bar l/m (Taps) | 6 l/min |
| Flow Rate 0.5Bar l/m (Taps) | 18 l/min |
| Flow Rate 1Bar l/m (Taps) | 25 l/min |
| Flow Rate 2Bar l/m (Taps) | 35 l/min |
| WRAS Approved (Taps) | NO |
| TMV2 Approved (Taps) | No |
| TMV3 Approved (Taps) | No |
| Tap Installation Holes | 1 |
| No. Of Handles | 2 |
| Height Of Spout | 242 MM |
| Tap Tails Included | Yes |
| Tap Spout Projection | 172 MM |
| Cartridge Included | Yes |
| Cartridge Material | Brass |
| Assembly Required | No |
| Fixings Included | Yes |
| Mounting Hardware Included | Yes |
| Installation Required | Yes |

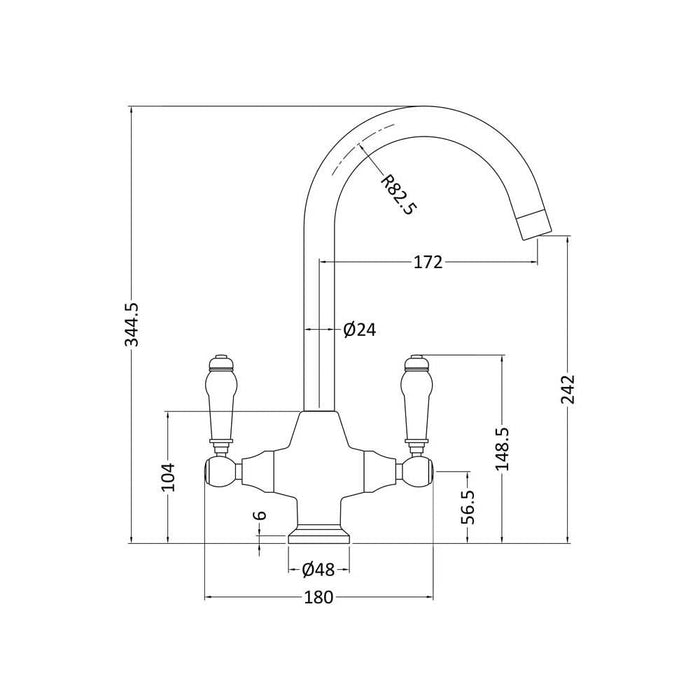

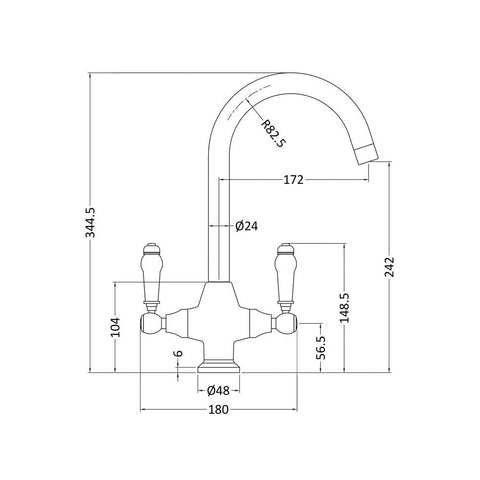

Illustrated Code
|
KB304
|
Downloads
Click for KB304 Fitting Instruction Data Sheet
