Description

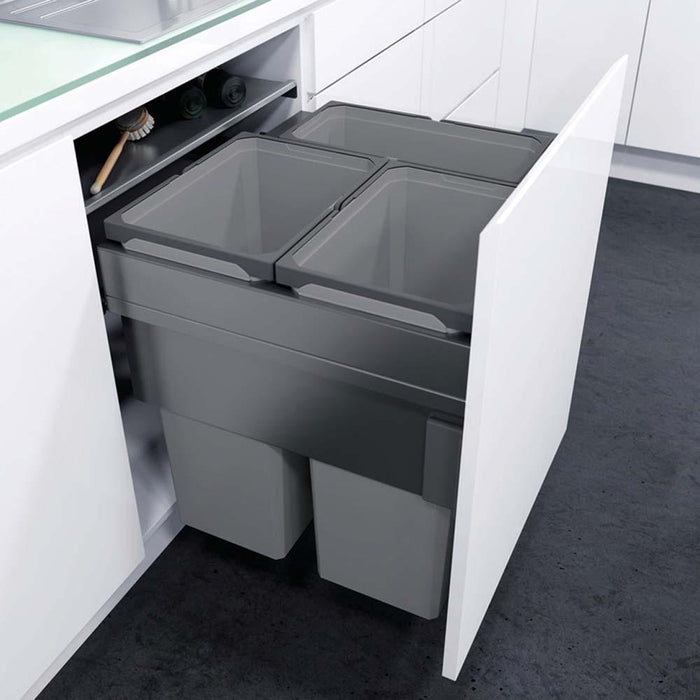

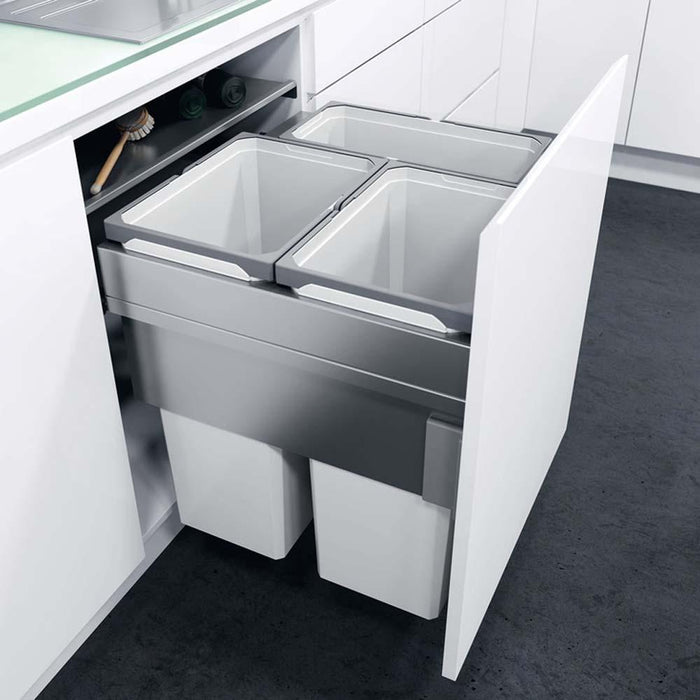

The space-saving VS ENVI® Space XX can be installed laterally in a very small kitchen unit, providing high-capacity, convenient waste disposal close to the worktop.

Integral Grass Nova Pro synchronized, over extension, soft and self closing runners provide quiet and effortless closing.

Bins are made of food safe plastic, making this bin system ideal for food storage rather than waste, if required.

• Automatic closure and self closing mechanism
• For 600 mm cabinet width - also available in a range of sizes for cabinet widths 300, 400, 450 & 500 mm
• Designed to be withdrawn from the cabinet whilst the lid remains inside
• Integral 3-way front adjustment via excenter
• Integral Grass Nova Pro soft and self closing, over extension runners

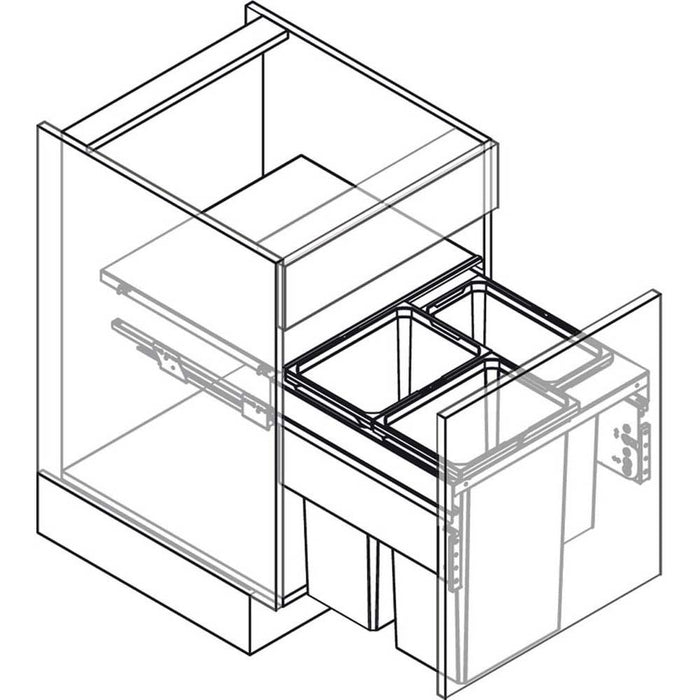

• Application: For door front fixing cabinets and For side wall mounting to cabinets

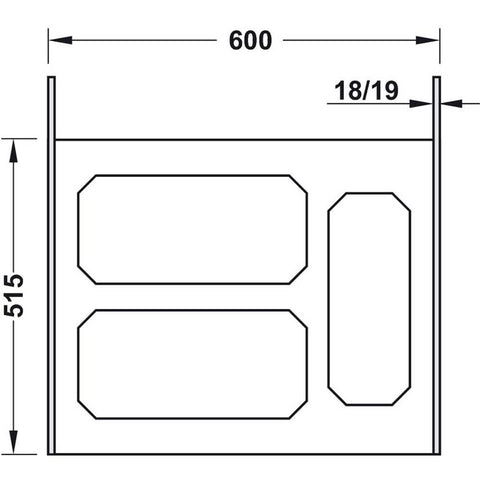

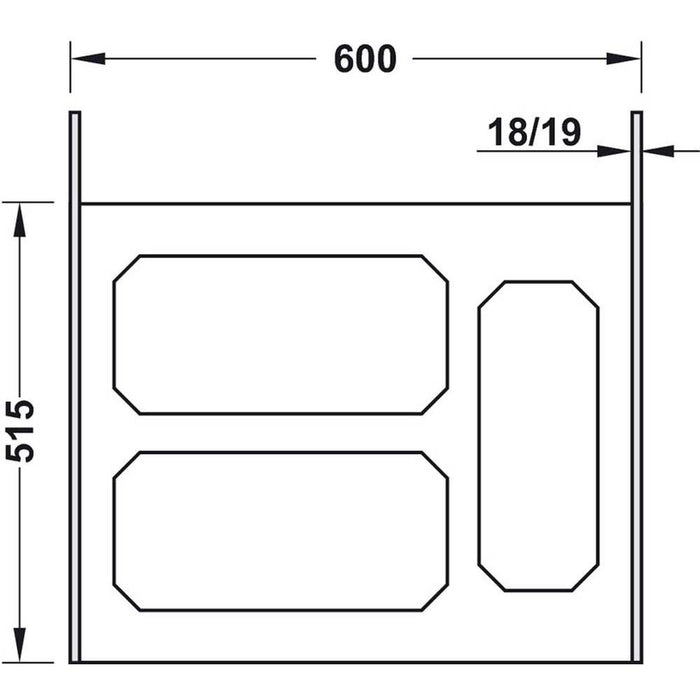

• Suitable for Cabinet width 600 mm, 16 or 18/19 mm board thickness
• Version: Side mounting and Soft closing
• Installation height Minimum: 580 mm
• Type of pull out: Manual
• Material: Side panels, lid, frame housing and components: Epoxy coated steel Bins: Plastic
• Guarantee: 10 years

Product Features

• Supplied with Fixings
• Order reference: VS ENVI Kick foot operated door opener is available to order separately
• Warranty information: Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested. Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items.
• Subject to T&C’s.

Illustrated Code

Downloads

Click for 503-44 Fitting instruction
