Description

Features

• Dimensions: W 600 x D 465 x H 254mm
• Cut-out Dimensions: W 534mm x D 429mm
• Suitable for cabinet widths of 600mm or greater
• Main Bowl Dimensions: W 530 x D 395 x H 225mm
• Stainless Steel sink with a polished finish
• Durable stainless steel construction throughout
• Softened square edges for a sharp but easy clean look
• Smooth lined luxury Orbit waste supplied as standard
• Comes with a 10 Years Guarantee

Specification

• Product Depth (mm): 465
• Product Width (mm): 600
• Product Height (mm): 254
• Cut Out Depth (mm): 429
• Cut Out Width (mm): 534
• Main Bowl Width (mm): 530
• Main Bowl Height (mm): 225
• Main Bowl Depth (mm): 395
• Manufacturers Guarantee: 10 Years
• Accessories Included: Included: AX1001, AX1008, AX1105, AX4046; Optional: AX2503, AX2501
• Brand: Abode
• Colour: Grey/Silver
• Corner Radius (mm): 15
• Finish: Polished
• Gauge Thickness (mm): 1.2
• Min Cabinet Width (mm): 600
• No. Drainers: 0
• No. Tap Holes: 0
• Product Type: Sink
• Range Name: Belfast
• Sink Colour: Stainless Steel
• Sink Material: Stainless Steel
• Sink No. Bowls: 1
• Sink Reversible: No
• Type: Undermount

Illustrated Code

Downloads

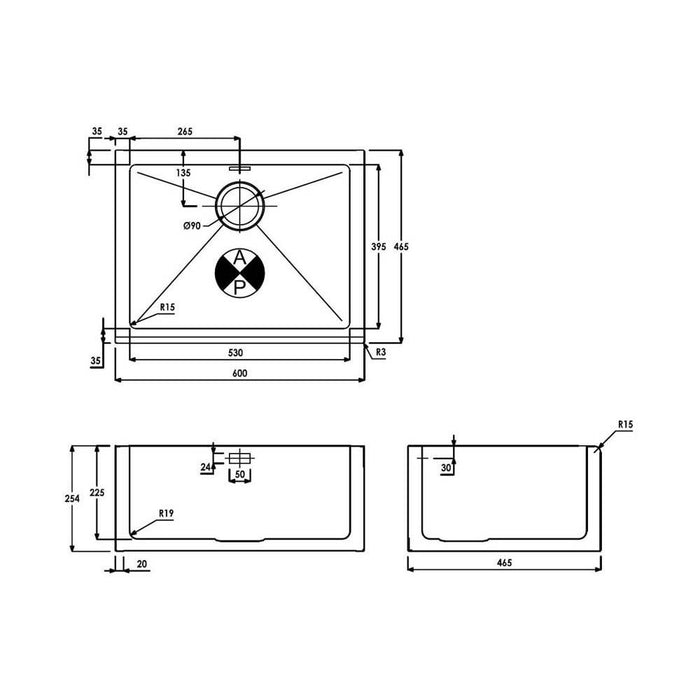

Click for AW5135-Line-Drawings
