Description

Features

• Dimensions: W 1000 x D 500 x H 210mm
• Reversible Sink
• Cut-out Dimensions: W 980mm x D 480mm
• Suitable for cabinet widths of 600mm or greater
• Main Bowl Dimensions: W 449 x D 415 x H 178mm
• Fireclay ceramic sink with a white gloss finish
• Durable finest grade fireclay construction throughout
• High capacity bowl volume to accept larger cookware
• Reversible drainer position for maximum flexibility
• Comes with a 10 Years Guarantee

Specification

• Product Depth (mm): 500
• Product Width (mm): 1000
• Product Height (mm): 210
• Cut Out Depth (mm): 480
• Cut Out Width (mm): 980
• Main Bowl Width (mm): 449
• Main Bowl Height (mm): 178
• Main Bowl Depth (mm): 415
• Manufacturers Guarantee: 10 Years
• Accessories Included: Included: 473811, AX4002, AX1008; Optional: AX2503
• Brand: Abode
• Colour: White
• Corner Radius (mm): 20
• Finish: Gloss
• Gauge Thickness (mm): 12
• Handing: Reversible
• Min Cabinet Width (mm): 600
• No. Drainers: 1
• No. Tap Holes: 2 x Ø 35mm, Part depth cut on rear
• Product Type: Sink
• Range Name: Acton
• Sink Colour: White
• Sink Material: Fireclay ceramic
• Sink No. Bowls: 1
• Sink Reversible: Yes
• Type: Inset

Illustrated Code

Downloads

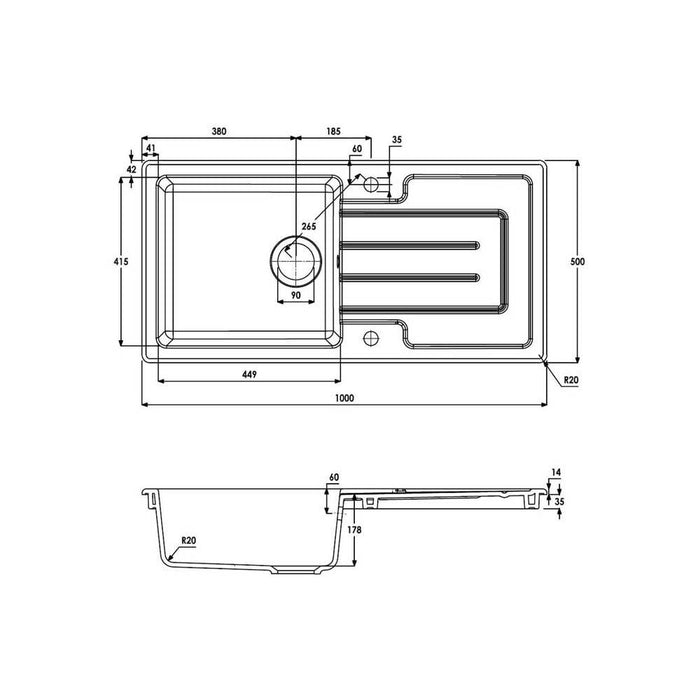

Click for AW1040-Line-Drawings
