Description

• Consists of: built-in sink, 2-hole single lever kitchen mixer, control unit, hose box, manual waste and overflow set
• Material sink: SilicaTec
• Number of bowls: 1 main bowl and 1 additional bowl
• Without drainage

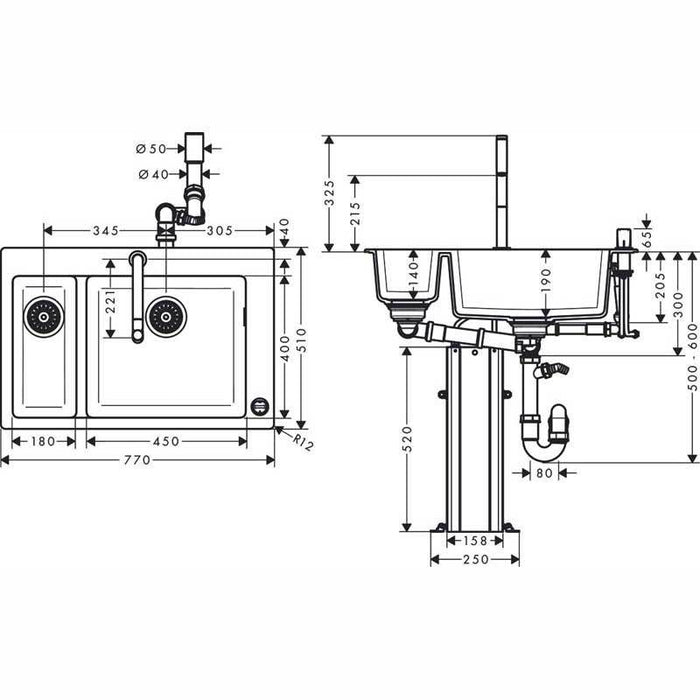

• Tap hole for drilling is predefined (see scale drawing)
• Sink depth: 190 mm
• Cut-out dimensions: 750 x 490 mm
• Cabinet size: 80 cm
• Installation type: topmount
• Position overflow: on the right side of the main bowl
• 3/8inch hose connections
• Flow rate (at 3 bar) 8 l/min
• Ceramic cartridge
• MagFit magnetic shower support
• Integrated non-return valve
• Swivel spout 150°
• Normal spray
• ComfortZone 200 provides space for greater freedom of movement
• Select button for a comfortable start/stop of the water flow
• For quiet, smooth and protected hose guidance in the cabinet, under the countertop, with extension length up to 76 cm

AirPower: more volume with added air

With this shower technology, Hansgrohe mixes water with air, and you feel pleasantly sparkling AirPower all over your skin. As water enriched with air makes the droplets plumper, lighter and softer. This means you use your water more efficiently.

ComfortZone: mixers at different heights

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.

QuickClean: easy limescale removal

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon naps make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.

Select: convenience at the touch of a button

The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.

Illustrated Code

Downloads

Click for 43220000 Data Sheet
